A New Class of Building Surface
Uncompromised Aesthetic Freedom
Achieve the authentic look of stone, wood, or brick on any facade, seamlessly blending renewable energy generation with architectural design.
Breakthrough Versatility Beyond Glass
Go beyond the limitations of traditional glass BIPV. Our solution is designed for the 90% of buildings without glass curtain walls, unlocking solar potential for virtually any structure.
Generate over 60% more power than standard 60% transmittance
Generate over 60% more power than standard 60% transmittance glass BIPV while reducing the product’s carbon footprint by 54.6%—maximizing energy yield and sustainability.
Intelligent, Multi-Functional Building Skin
Transform your building envelope into an active system. Customize with integrated displays, enhanced insulation, or air-purifying negative ion release for smarter, healthier, and more adaptive spaces.
International Invention Awards
- Winner of the 123rd Paris International Invention Gold Award
- Winner of the 76th Nuremberg International Exhibition of Inventions Award、
- Winner of the 50th Geneva International Inventions Award
More
eSolarFacade(eBIPV) Marble Castol Blue
Specifications (mm): 1140×570
Custom dimensions available
Customizable Color options
eSolarFacade(eBIPV) Marble Nile Dark Grey
Specifications (mm): 1140×570
Custom dimensions available
Customizable Color options

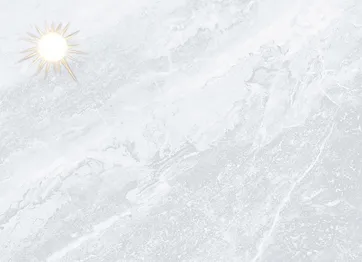

eSolarFacade(eBIPV) Marble Veil White
Specifications (mm): 1140×570
Custom dimensions available
Customizable Color options

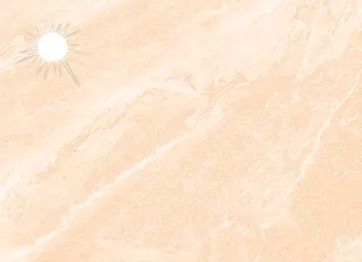

eSolarFacade(eBIPV) Marble Veil Yellow
Specifications (mm): 1140×570
Custom dimensions available
Customizable Color options

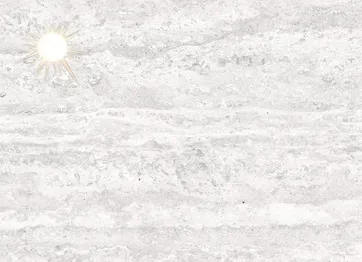

eSolarFacade(eBIPV) Marble Cloud White
Specifications (mm): 1140×570
Custom dimensions available
Customizable Color options
eSolarFacade(eBIPV) Stone Brick Kamu Yellow
Specifications (mm): 1140×570
Custom dimensions available
Customizable Color options
eSolarFacade(eBIPV) Stone Brick Portoro
Specifications (mm): 1140×570
Custom dimensions available
Customizable Color options
eSolarFacade(eBIPV) Stone Brick Anna Medium Grey
Specifications (mm): 1140×570
Custom dimensions available
Customizable Color options
eSolarFacade(eBIPV) G Facing Brick Time Grey
Specifications (mm): 1140×570
Custom dimensions available
Customizable Color options
eSolarFacade(eBIPV)
Technical Parameters
Energy Efficiency Comparison:
Power Efficiency:60% HIGHER than glass BIPV with 60% transmittance(CQC/TUV certification)
Carbon Emissions:54.6% lower than glass BIPV(BV certification)
eBIPV Technical Specifications
Test Conditions :STC(Standard Test Conditions 1000 W/m2-AM 1.5 -Temperature 25°C)
Maximum Power (Pmax) :59.23~ 166.62 W
Maximum Power Voltage (Vpmax) :20.70 ~29.22 V
Maximum Power Current (Ipmax): 2.86 ~ 5.70 A
Open Circuit Voltage(Voc) :24.18 ~35.52V
Short Circuit Current (Isc) :3.15 ~ 6.17A
Module Efficiency :9.12% ~17.63%
Maximum System Voltage (VDC) :1000 V (TUV/CE/CB/CQC/UKCA)
Series Fuse Rating: 25 A
Power & Other Electrical Specification Tolerance: 5%
Application
Building exterior walls
“Photovoltaic technology empowers natural stone surfaces, revolutionizing traditional
curtain wall energy – turning every inch of the building’s texture into a
container of light.”
Building exterior walls
“Excess electricity stored during the day activates luminous crystals to release a
nebula-like soft light. The building’s facade transforms into a giant energy
hourglass, rewriting the laws of time with light and shadow.”
Building exterior walls
“Digital Engraving X Photovoltaic Genes, Reconstructing the Energy Aesthetics of
Building Surfaces”
Hotel Club
“The lines are PHOMI’s love letter to the sun, the thousand-year-old stone veins
flowing with electric love under the sunlight.”
Hotel Club
“When the photovoltaic feathers evoke the life memory of wood, each grain of wood
transforms the light of dawn and dusk into green electricity.”
Hotel Club
“Transforming abstract electric currents into the vital signs of bricks, enhancing the
perception of brick wall architecture”
Commercial space exterior wall
“Juxtaposing the history of stone formation with the clean energy revolution strengthens
the historical depth of architecture”
Civilian villa exterior wall
“Let the villa’s exterior wall become a thinking energy artist”
Industrial park exterior wall
“When sunlight passes over the concave and convex textures, the wall shimmers as if
breathing, weaving mechanical aesthetics and clean energy into a futuristic
ecological landscape.”
Teaching building facade
“These ‘breathing’ light and shadow matrices allow the teaching space to engage in a
silent, intelligent dialogue with natural energy.”
Facade of educational institution
“The wall integrates photosynthesis and photoelectric conversion, making the building a
living, breathing organism.”
Hospital facade
“The wall has quietly settled in the long river of time, smudged with a warm luster
that is unique to time.”
Museum wall
“The wall transforms regional cultural symbols into clean energy, allowing historical
memory to continue to grow through photosynthesis.”
Office building wall
“The light energy matrix weaves the secret language of light within, transforming
the rugged architectural aesthetic into an energy-saving poem.”
Municipal building walls
“The wall is both a container of memory and a producer of clean energy, allowing every
kilowatt-hour of electricity to carry the warmth of civic
participation.”
Use a laser rangefinder and digital level for wall positioning. Secure the custom keel with an impact drill using mechanical anchoring. Align the panel slots with the keel for initial fixation, then fine-tune and reinforce with specialized connectors to ensure precision and efficiency.
1.Cleaning:
·After acceptance, the frequency of cleaning should be determined based on the level of wall contamination, with a minimum of once a year.
·Use hand soap mixed with tap water, and avoid using organic solvents.
2.Curtain wall inspection and maintenance:
·A comprehensive inspection of the curtain wall should be conducted every five years, including the panels, sealing strips, and sealants.
·Tighten any loose bolts, and for corroded connectors, remove rust and repaint or replace them.
·Loose or damaged panels should be repaired or replaced.
·Sealants and sealing strips that have fallen off or are damaged should be repaired or replaced.
·Damaged components or connectors should be replaced or reinforced if the anchoring is loose
·Regularly check the drainage system, and clear any blockages.
· Any loose or damaged hardware should be replaced.
Civilian eBIPV (eSolarFacade):
For residential eBIPV (eSolarFacade) solar panels, we’ll provide you with an off-grid energy storage system, including batteries, controllers, and inverters, based on your purchase quantity. For pricing on eBIPV (eSolarFacade) and energy storage systems, please contact your local PHOMI distributor.
Commercial eBIPV (eSolarFacade):
The installation of the electrical part should be carried out simultaneously with the curtain wall installation, and should be carried out strictly in accordance with the special electrical design drawings and the design and construction specifications of the electrical profession.
